CF-250B

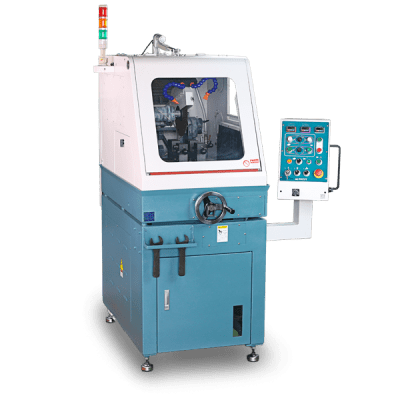

The CF-250B Precision Cutter allows precise, laser guided cutting to achieve absolute parallelism and lack of deformation.  Parameters are easily set for all type of materials.  Includes vises and recirculating system.

Categories: ,

Description

Maximum flexibility is achieved by the cutting action moving in both the Y (back and forth) and Z (up and down) axis, allowing for cutting of parts with a large diameter or requiring a long traverse.  Set of vises and recirculation system are included.

Download brochure

Specifications

Motor Power

3 hp

Max Diameter Cut

60mm

Cutoff Blade

12″

Cutting Direction

Y and Z Axes

Rotational Speed

3000 RPM

Travel Distance

Y=250mm (10″), Z=200mm (8″)

Recirculation Tank

80 Litres (21 Gallons)

Coolant Pump

1/4 hp

Power

220V/415V/440V-3ph
